How to Read a Property Floor Plan: A Practical Buyer Guide

A property floor plan can reveal much more than the number of bedrooms and total built-up area. It can show how efficiently the space is used, whether furniture will fit, how people will move through the home and which compromises may become frustrating after moving in. This guide explains how buyers can read a property floor plan more carefully before comparing units or paying a booking fee.

Property brochures often make layouts look clean, spacious and easy to furnish.

However, a floor plan is not merely a marketing image. It is a technical summary of how the unit is organised.

A careful buyer should use it to answer questions such as:

• Can the bedrooms fit proper beds and wardrobes?
• Is the living area easy to furnish?
• Does the dining area interrupt the walkway?
• Is the kitchen practical?
• Is there enough storage?
• Are bedrooms private?
• Are bathrooms conveniently located?
• Is the balcony using too much of the built-up area?
• Will heat, noise or poor orientation affect comfort?
• Can the unit support future household changes?

1. Confirm the Exact Layout Version

Projects often have several layouts with similar names.

For example:

• Type A
• Type A1
• Type A2
• Type B
• Type B Dual-Key
• Mirror layout
• Corner layout
• High-floor variation
• Special floor variation

A small change in unit type may affect:

• Built-up area
• Balcony size
• Kitchen position
• Bedroom width
• Window placement
• Yard or utility area
• Car park allocation
• Orientation
• Plumbing layout
• Dual-key configuration

Always match the floor plan to the exact unit number, tower, floor and sales package.

2. Check the Scale and Room Dimensions

A floor plan should be read using actual measurements whenever they are available.

Important dimensions include:

• Living-room width
• Dining-area width
• Master-bedroom width and length
• Secondary-bedroom width and length
• Kitchen width
• Balcony depth
• Corridor width
• Bathroom dimensions
• Yard or utility dimensions
• Ceiling height, if confirmed

A room may appear large on the drawing because of how the plan is presented, but actual dimensions determine whether normal furniture can fit.

As a practical reference, buyers should test whether the room can accommodate:

• A standard bed
• Bedside tables
• Wardrobe
• Walking space
• Desk, if required
• Door opening
• Window access

3. Trace the Main Circulation Path

Circulation means how people move through the unit.

Imagine entering the home and walking to:

• The living room
• The kitchen
• Each bedroom
• The bathrooms
• The balcony
• The yard
• The main entrance

Good circulation should feel direct and natural.

Potential problems include:

• Walking through the dining area to reach bedrooms
• Furniture blocking the route to the balcony
• Bedroom doors opening into a narrow corridor
• The kitchen entrance conflicting with appliance doors
• Bathroom doors facing the dining table
• The main entrance opening directly into a private area
• Long corridors consuming valuable space

Trace the movement using your finger on the plan. If the main path cuts through furniture zones, the layout may be harder to use than it first appears.

4. Test Real Furniture Placement

Brochure floor plans may show furniture icons, but these are not always reliable indicators of scale.

Test the unit using realistic furniture dimensions.

Living area

Check whether it can fit:

• Sofa
• Television console
• Coffee table
• Side table
• Comfortable walking distance
• Curtains
• Air-conditioning airflow

Dining area

Check whether chairs can be pulled out without blocking:

• Main walkways
• Kitchen entrance
• Bedroom corridor
• Balcony access
• Main entrance

Bedrooms

Check whether each bedroom can fit:

• Bed
• Wardrobe
• Bedside table
• Desk where required
• Walking space around the bed
• Door swing
• Window access

5. Evaluate the Living and Dining Relationship

Some layouts combine the living and dining area into one long rectangle. Others divide the spaces more clearly.

Neither approach is automatically better.

Consider:

• Whether the television wall is usable
• Whether the sofa blocks the balcony
• Whether the dining table interrupts circulation
• Whether the space is too narrow for both functions
• Whether natural light reaches the dining area
• Whether air-conditioning can serve both zones effectively
• Whether the entrance looks directly into the whole living space

A long narrow layout can appear spacious in a brochure but become difficult to furnish.

A square living and dining area may offer more flexibility, but only if doors, windows and structural columns do not interfere.

6. Review the Kitchen as a Working Space

A kitchen should be assessed as a working environment, not only as a row of cabinets.

Check:

• Counter length
• Fridge position
• Hob position
• Sink position
• Washing-machine position
• Storage
• Ventilation
• Window access
• Door swing
• Separation from the living area
• Space for appliances
• Space for food preparation
• Yard or utility connection

For buyers who cook regularly, a very compact open kitchen may become a major limitation.

For investment, consider the likely tenant profile. A studio tenant may accept a small kitchenette, while a family tenant may expect more storage and food-preparation space.

7. Check Bedroom Privacy and Practicality

Bedroom count alone does not determine whether a layout is suitable.

Review:

• Bedroom size
• Bedroom shape
• Window position
• Wardrobe wall
• Door location
• Privacy from the living area
• Distance from bathrooms
• Noise from lifts or corridors
• Exposure to afternoon sun
• Shared walls with mechanical rooms or kitchens
• Whether the bed must face a door or window

A “three-bedroom” unit may include one room that is significantly smaller than the others.

If a room can only fit a single bed and small wardrobe, buyers should decide whether it is genuinely a bedroom, study, child’s room or flexible space.

8. Review Bathroom Access and Privacy

Check how each bathroom is used.

Questions include:

• Is there an ensuite bathroom?
• Does a common bathroom open directly toward the dining area?
• Must visitors walk through a bedroom?
• Is the bathroom naturally ventilated?
• Is the shower separated?
• Does the bathroom door clash with another door?
• Is there enough dry area?
• Is the plumbing location practical?
• Is there suitable access for elderly family members?

For family use, bathroom location can affect privacy and daily convenience.

For investment, a two-bedroom unit with only one bathroom may appeal to a narrower tenant group than a two-bedroom, two-bathroom layout.

9. Measure the Balcony, Yard and Utility Areas

Balconies can improve light, ventilation and lifestyle value.

However, they also form part of the total built-up area in many projects.

Check:

• Balcony depth
• Balcony width
• Furniture usability
• Exposure to rain
• Sun direction
• External condenser location
• Drainage
• Privacy from neighbouring units
• Noise
• View obstruction
• Whether the balcony is oversized relative to the internal space

Also check the yard or utility area.

A practical yard may support:

• Washing machine
• Dryer
• Cleaning equipment
• Drying clothes
• Storage
• Household services

A project with a larger advertised built-up area may not feel larger internally if a significant portion is allocated to balconies, air-conditioning ledges or utility zones.

10. Look for Doors, Windows and Structural Constraints

The most important parts of a plan are sometimes the least noticeable.

Check:

• Door swings
• Sliding doors
• Window positions
• Structural columns
• Shear walls
• Service shafts
• Air-conditioning ledges
• Electrical distribution boards
• Plumbing ducts
• Fixed kitchen walls
• Refuse-room proximity
• Fire doors
• Emergency staircases

A structural column can affect:

• Wardrobe placement
• Television-wall placement
• Bed position
• Cabinet design
• Renovation flexibility

A window can improve natural light, but it may also reduce usable wall space.

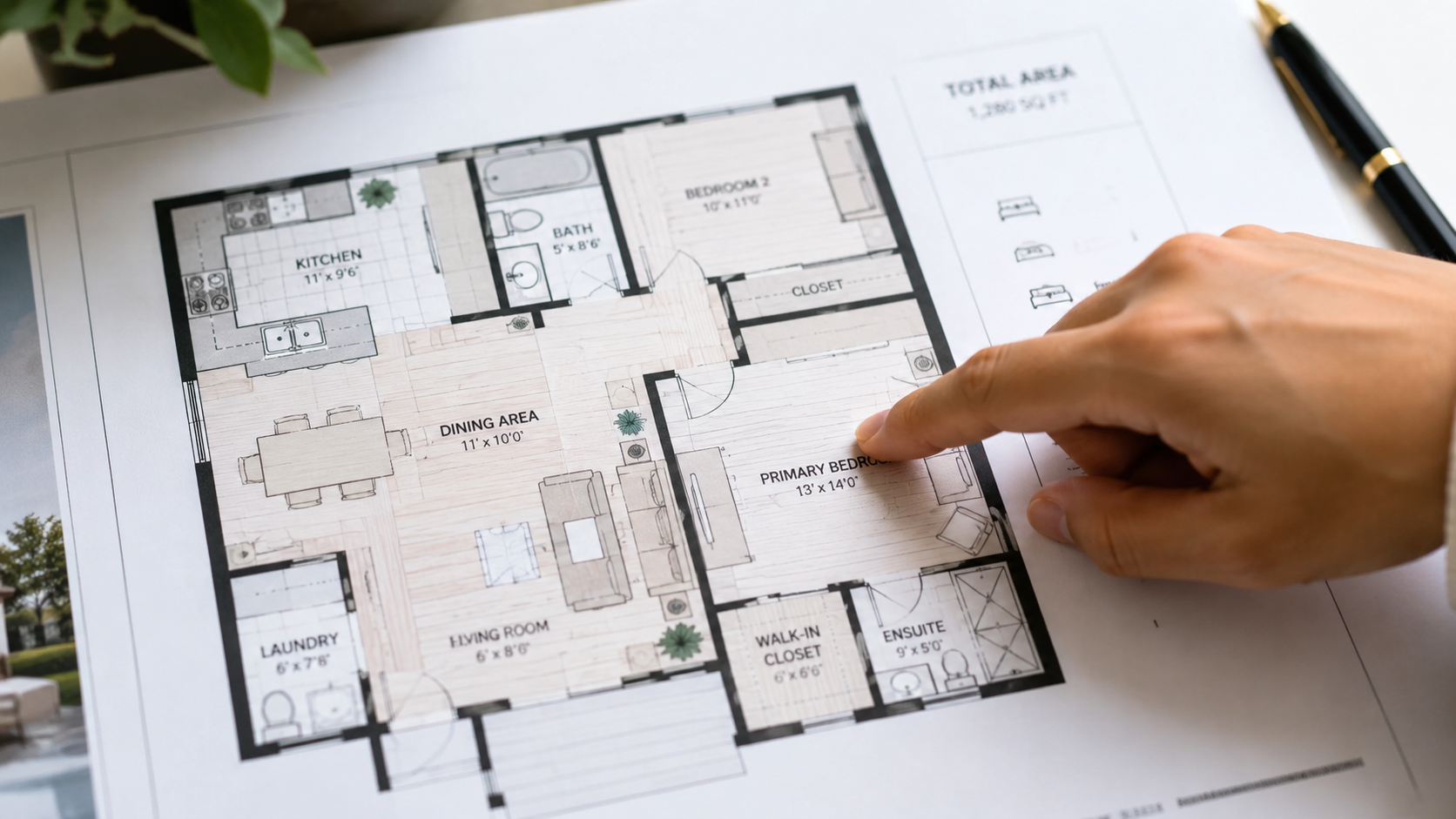

Alt Text: Buyer reviewing doors, windows and structural columns on a condominium floor plan Caption: Small technical details can strongly affect furniture placement and renovation flexibility. [/IMAGE_2]

11. Check Orientation, Sun and External Conditions

A floor plan should be read together with the site plan and unit orientation.

Review:

• Morning sun
• Afternoon sun
• Prevailing wind
• View direction
• Neighbouring towers
• Main roads
• Rail lines
• Schools
• Facilities decks
• Swimming pools
• Drop-off areas
• Refuse rooms
• Lift lobbies
• Mechanical areas
• Future development plots

West-facing units may receive stronger afternoon heat.

Pool-facing units may offer a pleasant view but also experience activity and noise.

High-floor units may have broader views, but buyers should avoid assuming that a view is permanent unless surrounding development conditions are known.

12. Understand Dual-Key and Flexible Layout Claims

A dual-key layout generally separates part of the unit so that two living zones can operate with greater independence.

However, buyers should verify the actual design.

Check:

• Whether there are separate entrances
• Whether each zone has a bathroom
• Whether there is a proper kitchenette
• Whether access is truly independent
• Whether utilities are separately metered
• Whether short-term rental is permitted
• Whether management rules allow the intended use
• Whether privacy is sufficient
• Whether the layout reduces the size of the main unit

A layout described as “dual-key potential” may not be a fully functional dual-key unit.

13. Compare the Brochure Plan With the SPA Plan

Marketing plans and statutory or contractual plans may not present information in the same way.

Before signing, compare:

• Unit type
• Built-up area
• Room arrangement
• Balcony
• Yard
• Car parks
• Entrance
• Doors
• Windows
• Common property
• Access
• Furnishing
• Special features

Ask for clarification when the sales illustration differs from the contractual documents.

14. Read the Layout According to Your Buying Purpose

For own stay

Prioritise:

• Daily liveability
• Storage
• Privacy
• Kitchen function
• Family needs
• Work-from-home needs
• Furniture fit
• Future household changes
• Natural light and ventilation

For investment

Prioritise:

• Tenant-friendly configuration
• Practical bedroom sizes
• Bathroom count
• Furnishing cost
• Rental flexibility
• Layout competition
• Ease of maintenance
• Target tenant profile
• Resale appeal

For future family use

Consider:

• Child’s room
• Elderly access
• Storage growth
• Study area
• Flexible room
• Bathroom access
• Long-term comfort

The same layout may receive a different verdict depending on the buyer’s purpose.

15. Use a Floor Plan Scorecard

A scorecard can make comparisons more consistent.

Floor Plan Factor	Suggested Weight	Score 1–10
Furniture fit	15%	Enter score
Living and dining efficiency	15%	Enter score
Bedroom practicality	15%	Enter score
Kitchen function	10%	Enter score
Storage	10%	Enter score
Privacy	10%	Enter score
Circulation	10%	Enter score
Natural light and ventilation	5%	Enter score
Balcony and utility use	5%	Enter score
Future flexibility	5%	Enter score

Do not rely on the total score alone.

A layout may achieve a reasonable average score but still fail an essential requirement, such as:

• No suitable work-from-home space
• Insufficient bedrooms
• Poor kitchen function
• No privacy
• Unacceptable heat exposure
• Difficult access for elderly family members

Practical Floor Plan Checklist

Question	Status	Notes
Is this the exact plan for the selected unit?	☐	Enter notes
Are room dimensions provided or confirmed?	☐	Enter notes
Can normal furniture fit comfortably?	☐	Enter notes
Are the circulation paths clear?	☐	Enter notes
Is the living and dining area practical?	☐	Enter notes
Is the kitchen suitable for the household?	☐	Enter notes
Are the bedrooms usable and private?	☐	Enter notes
Are bathroom locations practical?	☐	Enter notes
Is storage sufficient?	☐	Enter notes
Is the balcony proportion reasonable?	☐	Enter notes
Are doors and windows well positioned?	☐	Enter notes
Are structural columns or shafts affecting the layout?	☐	Enter notes
Is the unit orientation acceptable?	☐	Enter notes
Are nearby lifts, refuse rooms or facilities a concern?	☐	Enter notes
Does the layout fit the buying purpose?	☐	Enter notes

Louis Property Insights Verdict

Disclaimer: This article provides general property-buying information and does not constitute legal, financial or loan advice. Laws and contractual arrangements may differ according to the property type, location and transaction. Buyers should obtain advice from qualified professionals based on the actual documents involved.
